Description

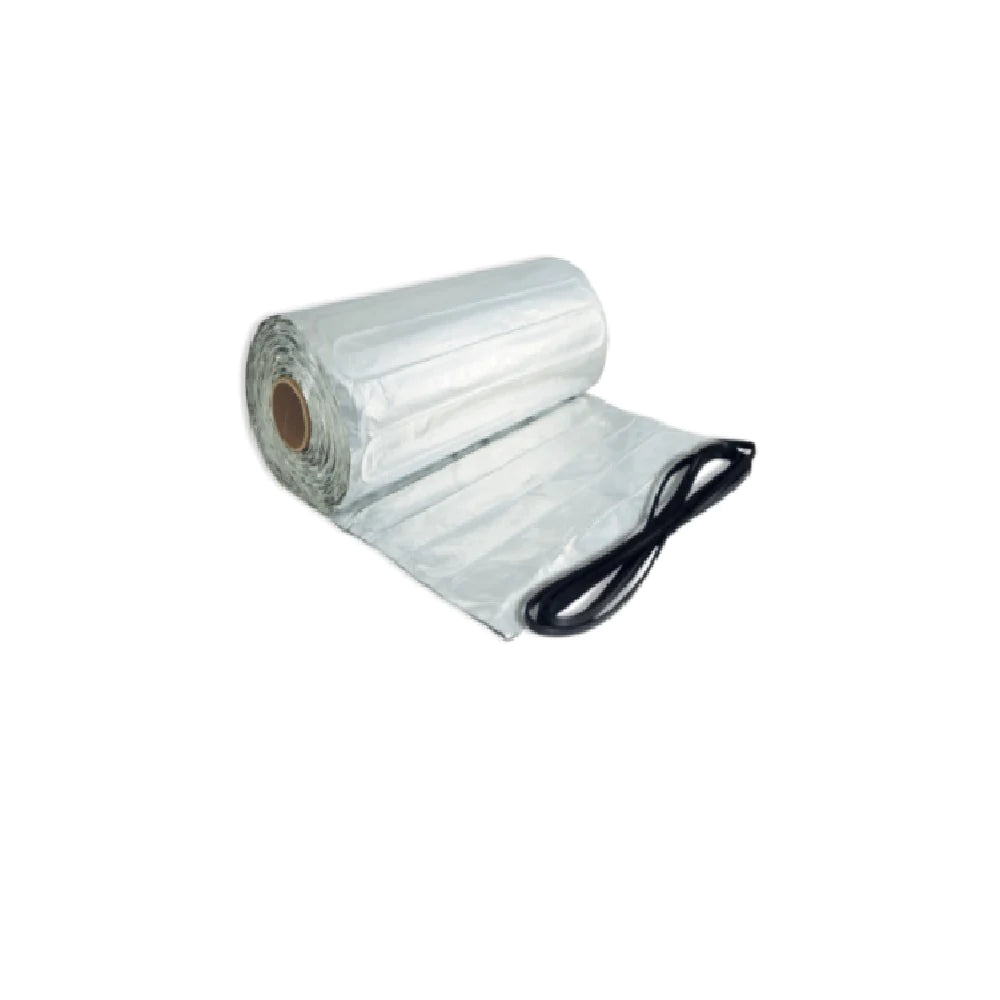

Thermogroup Thermofoil PRO 140W/m² 12x0.5 - 6.0m² 840Watts 121412

Technical Data

Width: 500mm
Thickness: 2.5mm
Max. Temperature*: 28°C *
Protection Rating: IP67
Voltage: 240Volts
Wattage: 140W/m²
Conductor Type: Single Ended
Cold Tail Length: 5m

Model: 121412

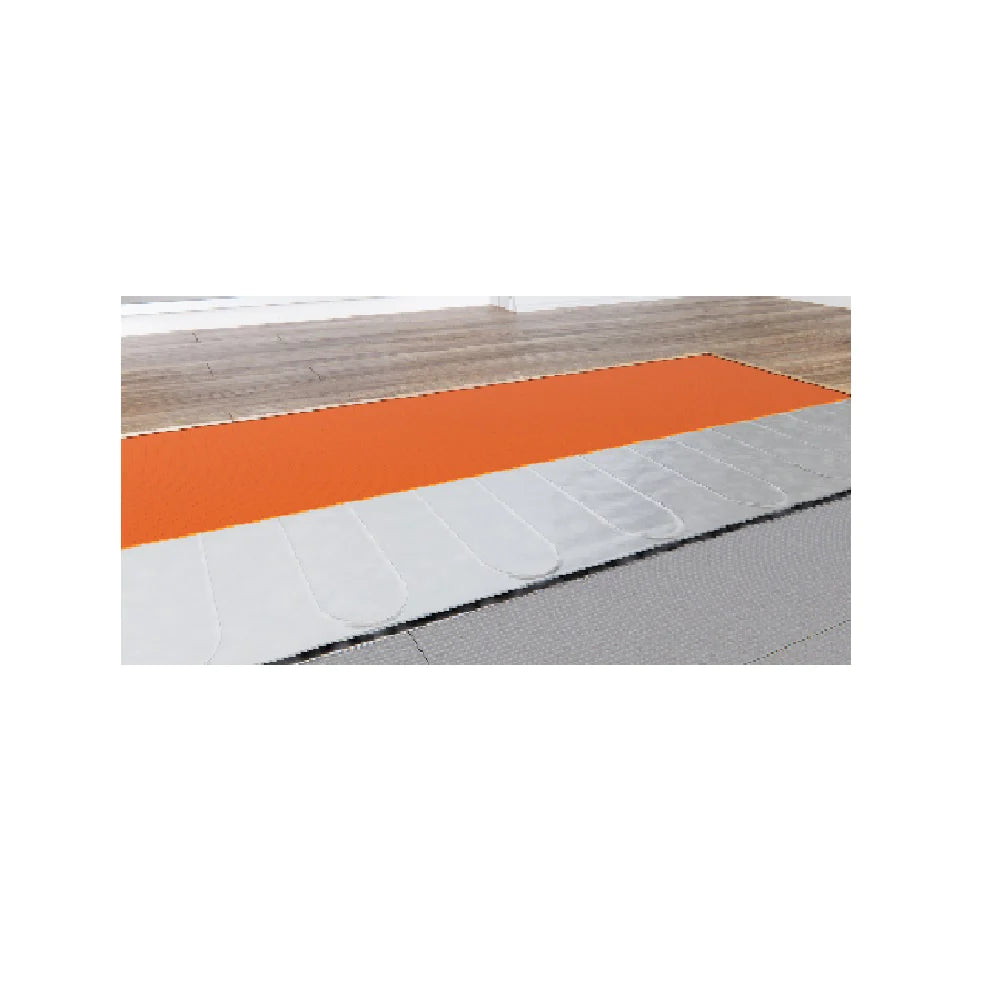

Bring the luxury feeling of underfloor heating and the simplicity of an electric system to timber and carpet floors.

Thermofoil PRO is the most advanced electric under floor heating foil available today. Innovations such as our exposed cable loops and continuous earth protection ensure an easy installation and total safety.



  • Lifetime warranty

    We are so confident in the quality of Thermofoil Pro that we give each system a warranty that lasts a lifetime with 3 year warranty on the thermostats.



  • Efficient heat exchange foil

    The double layer of foil in Thermofoil PRO is specifically designed to protect the heating element and achieve an even spread of heat to the floor above.


  • Easy cut and return installation

    The accessible cable loops are an example of Thermogroup’s product innovations. They make cut and return installation quick and easy while protecting the heating element.



  • Continuous earth protection braid

    Electrical safety is paramount and Thermofoil PRO’s continuous earth braid protection runs the entire length of the heating cable. You can even install it in a bathroom.


  • Minimal height build-up

    The foil system is only 2.5mm thick with a low profile cold tail of only 4mm thick, which can be concealed within the insulation.

{} ,



  • Thermonet includes a 3.5mm TwistedTwin cable for longer-lasting heating cables with zero electromagnetic fields (Zero EMF)
  • Thermonet is installed using a wire side facing down allowing the heating cable to be protected from damage during the installation by the hardwearing mesh layer.
  • Thermonet heating mats are also available in kits including the standard thermostat (5220A) or as heating mats only
  • Made in Germany



Features



  • Thermonet includes a 3.5mm TwistedTwin cable for longer-lasting heating cables with zero electromagnetic fields (Zero EMF)
  • Thermonet is installed using a wire side facing down allowing the heating cable to be protected from damage during the installation by the hardwearing mesh layer.
  • Thermonet heating mats are also available in kits including the standard thermostat (5220A) or as heating mats only
  • Made in Germany



Technical Info
  • Thickness3.5mm
  • Max Temperature28°C *
  • Protection RatingIP68
  • WarrantyLifetime Warranty
  • Conductor TypeSingled Ended
  • Cold tail length5m
  • Download Product Specs Sheet
Warranty & Returns
  • Thermogroup accessories are covered by 10 years replacement on products or parts*
