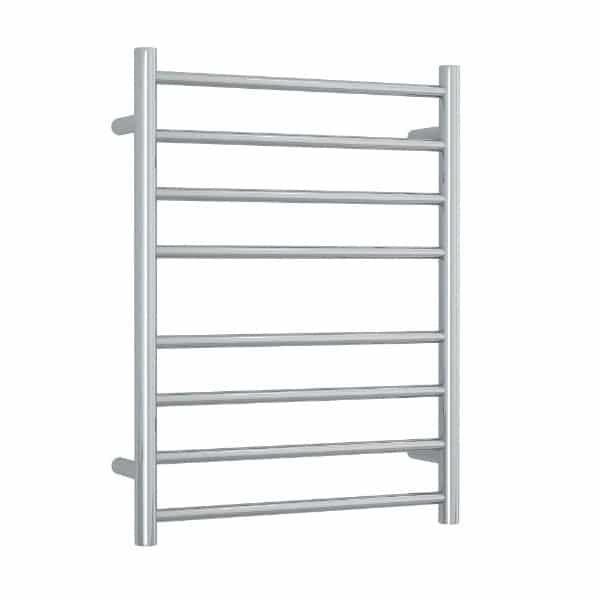

Thermogroup 8 Bar Straight Round Ladder Heated Towel Rail - Polished Stainless Steel

• Fits 2 towels on 8 heated bars
• Polished Stainless Steel finish to sit with polished stainless steel tapware and accessories
• Multiflex wiring: power can connect at any leg, left or right, top or bottom
• Hardwire or plug in: suits new builds and renovations
• Heats to about 45–55°C: warm to the touch, not too hot to handle
• Low running cost: 76W, about $0.70 a week at 4 hours a day
• IP55 rated for bathroom use
• Thermogroup warranty: 10 years
• Add a timer above so it switches on before your shower and off when you forget

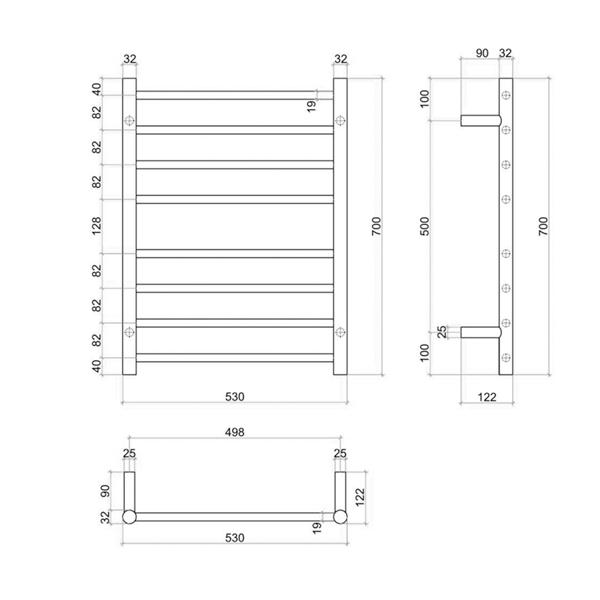

Dimensions: 530mm (W) x 700mm (H) x 122mm (D)
Colour: Stainless Steel
Product Features:

• The rail is grouped into two sets of four
• Multiflex wiring means the connection point is on the left and right-hand sides of the rail
• The connection point is typically at the bottom but the rail can be flipped so that it is at the top and provides the option of hardwired or plugin, all as standard out of the box
• The electric towel rail is designed to rapidly heat up and reach a temperature of around 45°C to 55°C degrees
• Constructed from quality 304-grade stainless steel material
• The rail can operate using an on / off switch
• Option to add a timer to choose the time when your towel rail heats up and reduces running cost if you forget to switch it off

Specs are from Thermogroup and are for guidance only. Confirm mounting points with the rail on site before drilling.

Installation

• Plug-in (exposed) install: you can do it yourself using the supplied lead and a nearby power point.
• Hardwired (concealed) install must be done by a licensed electrician.
• Fix into studs or timber noggins. Use the mounting points in Specifications to set them at rough-in.
• Wiring it through a timer is recommended.

Care

• Wipe with a soft damp cloth and dry. Mild soapy water only.
• Avoid abrasive pads, bleach and acidic cleaners, which can mark the finish.

• Output: 76Watts
• IP Rating: IP55
• Lead Length: 1.8mm
• Voltage: 240Volts
• No of Bars: 8
• Wiring Type: Multiflex - Concealed (hardwired) or exposed (plugin)
• Wiring Position: Any of the four mounting position
• Distance Between Mounting Points (Top to Bottom): 500mm
• Distance between Mounting Points (Left to Right): 498mm

Thermogroup is a proud family-owned business with a strong commitment to quality, innovation and comfort. Since its humble beginnings in 2003, the company has grown into one of the most respected brands in the industry.

Driven by the belief that warmth and comfort should be simple, affordable and stylish, Thermogroup offers innovative product solutions designed to enhance everyday living. Combining modern design with practical functionality, its products bring effortless luxury, lasting comfort and peace of mind to every home.

• SR23M Specification Sheet (PDF)
• Installation Guide (PDF)
• Thermogroup Warranty Information (PDF)

How much does it cost to run?
It draws 76W. At 4 hours a day and 33c/kWh that is about $0.70 a week. A timer keeps it to the hours you need.

Do I need an electrician?
Only for a hardwired install. The plug-in option just needs a nearby power point.

Can I use it with a timer?
Yes. Pick one above. A timer heats your towels before you shower and switches the rail off automatically.

How hot does it get?
About 45–55°C: warm enough to dry towels, not too hot to touch.
