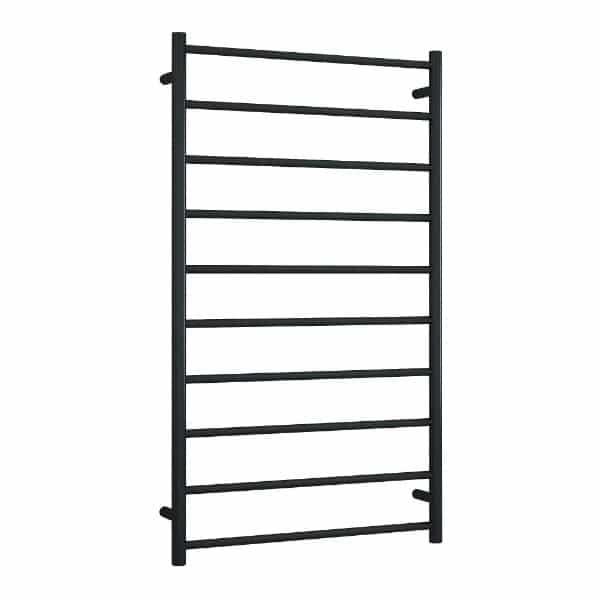

Thermogroup 10 Bar Straight Round Ladder Heated Towel Rail - Matte Black

• Fits 2 towels on 10 heated bars
• Matt Black finish to sit with matt black tapware and accessories
• Multiflex wiring: power can connect at any leg, left or right, top or bottom
• Hardwire or plug in: suits new builds and renovations
• Heats to about 45–55°C: warm to the touch, not too hot to handle
• Low running cost: 162W, about $1.50 a week at 4 hours a day
• IP55 rated for bathroom use
• Thermogroup warranty: 7 years
• Add a timer above so it switches on before your shower and off when you forget

Colour: Matte Black

Specs are from Thermogroup and are for guidance only. Confirm mounting points with the rail on site before drilling.

• Thermorail Ladder Rail
• Thermorail Connection Wire
• Leg Kit including:
- 2 x Non-Wired Legs
- 1 x Exposed Wired Leg
- 2 x Concealed Wired Legs
- 1 x White Concealed Wiring Sleeve
- 3 x Mounting Brackets (Supplied inside the leg)
- 1 x Exposed Wiring Mounting Bracket & Screw
- 4 x Wall Plugs
- 4 x Countersunk Screws
- 2 x Machine Screws
- 4 x Small Machine Screws (Supplied on rail)
- 4 x Grub Screws (Supplied inside the leg)
- 1 x Allen Key

Installation

• Plug-in (exposed) install: you can do it yourself using the supplied lead and a nearby power point.
• Hardwired (concealed) install must be done by a licensed electrician.

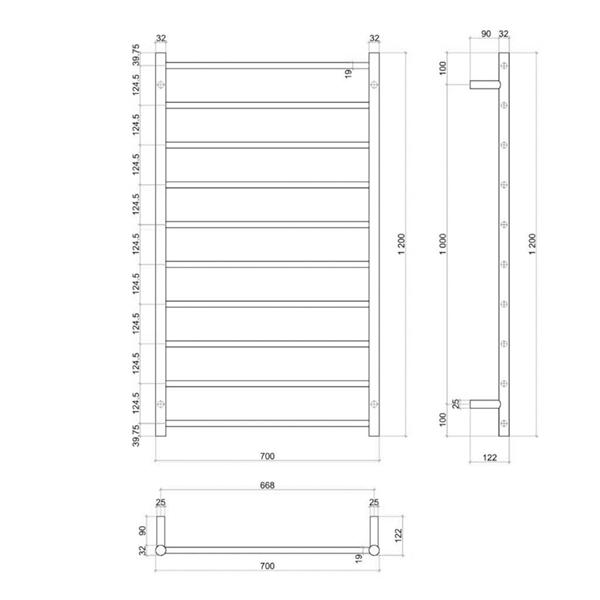

• Fix into studs or timber noggins. Use the mounting points in Specifications to set them at rough-in.
• Wiring it through a timer is recommended.

Care

• Wipe with a soft damp cloth and dry. Mild soapy water only.
• Avoid abrasive pads, bleach and acidic cleaners, which can mark the finish.

Thermogroup accessories are covered by 10 Year replacement product or parts*

Heated Towel Rails, Ladders:

• Polished Stainless Steel: 10 Year Warranty
• Brushed Stainless Steel: 7 Year Warranty
• Matte Black: 7 Year Warranty
• Made to Order Finishes: 5 Year Warranty

• SR69MB Specification Sheet (PDF)
• Installation Guide (PDF)
• Thermogroup Warranty Information (PDF)

How much does it cost to run?
It draws 162W. At 4 hours a day and 33c/kWh that is about $1.50 a week. A timer keeps it to the hours you need.

Do I need an electrician?
Only for a hardwired install. The plug-in option just needs a nearby power point.

Can I use it with a timer?
Yes. Pick one above. A timer heats your towels before you shower and switches the rail off automatically.

How hot does it get?
About 45–55°C: warm enough to dry towels, not too hot to touch.
