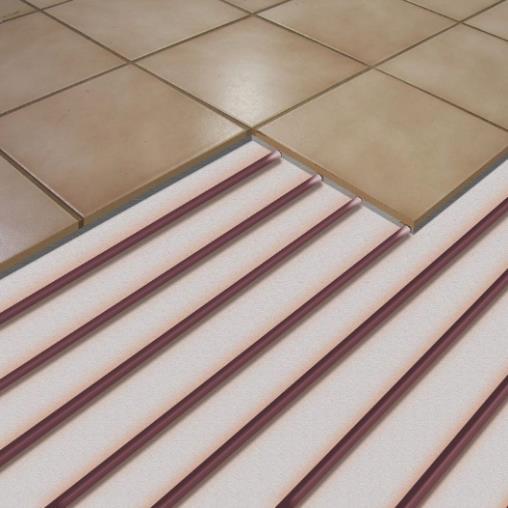

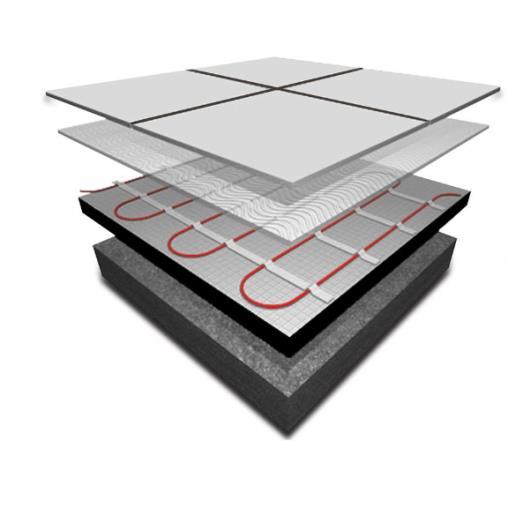

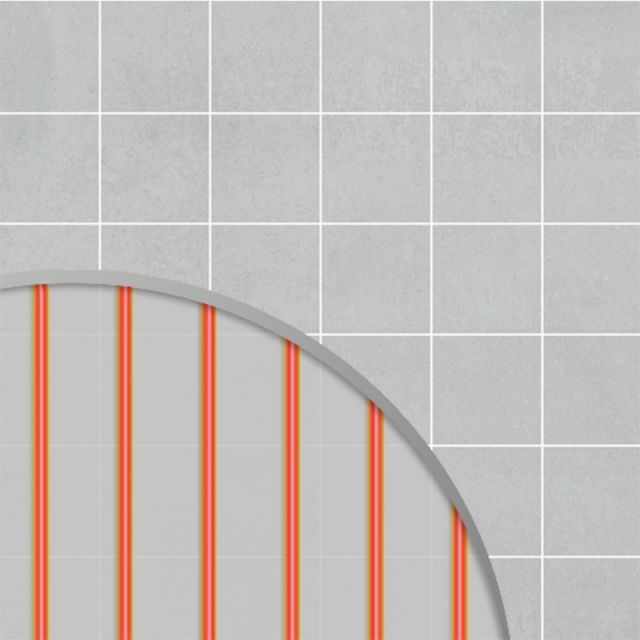

Get In Touch Product: Under Tile Heating System
Product Features:
- Absolutely safe and RDC protected (including in wet areas)
- Keeps bathrooms and laundries dry and reduces mould and damp odours
- Very low running costs (approximately 2¢ per m² / per hour)
- Thermostatically controlled
- No maintenance required
- Perfect for allergy sufferers
- Please note: m² is the total exposed floor area. ie Not under fixed furniture such as kitchen cabinets, vanity units etc.
Installation
- Installation cost is subject to prewire being completed
- Prewire consist of:
- Power supply capable of running the element
- Vertical Plate
- A draw wire to the floor
- For a 6000w system, a 30 amp relay will be required in the switchboard
Included in the Kit:
- Heating Element

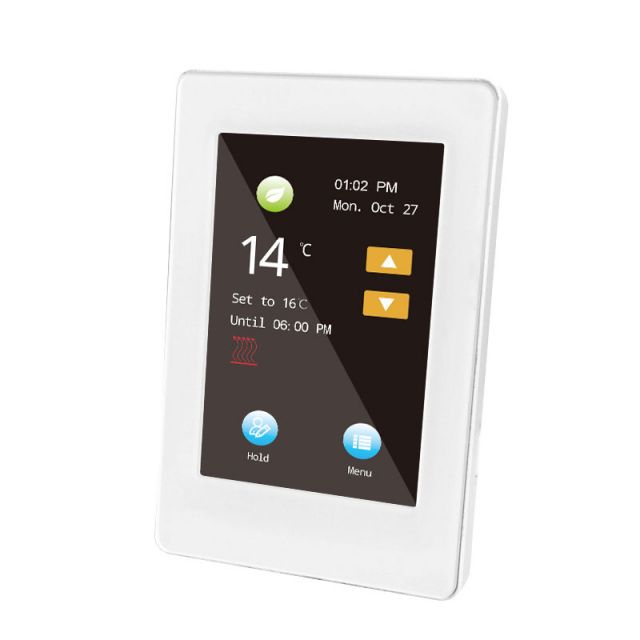

- 7-day Programmable thermostat with floor sensing probe
- Continuity alarm
- Fixing tape relay
- Instruction manual
Product Specifications
| Product Code | Coverage range in m² | Wattage | Installation Cost |
| UTH-200 | 1 - 1.3 | 200 | $220 - $330 |
| UTH-300 | 1.4 - 2 | 3 00 | $220 - $330 |
| UTH-400 | 2.1 - 2.6 | 400 | $220 - $330 |
| UTH-500 | 2.7 - 3.3 | 5 00 | $220 - $330 |
| UTH-600 | 3.4 - 4 | 6 00 | $220 - $330 |
| UTH-700 | 4.1 - 4.6 | 700 | $253 - $363 |
| UTH-800 | 4.7 - 5.3 | 800 | $253 - $363 |
| UTH-900 | 5.4 - 6 | 900 | $275 - $385 |
| UTH-1000 | 6.1 - 7.1 | 1000 | $297 - $407 |
| UTH-1250 | 7.2 - 8.9 | 1250 | $308 - $418 |
| UTH-1500 | 9 - 10.7 | 1500 | $330 - $468 |
| UTH-1750 | 10.8 - 12.5 | 1750 | $352 - $506 |
| UTH-2000 | 12.6 - 14.2 | 2000 | $385 - $550 |
| UTH-2500 | 14.3 - 17.8 | 2500 | $467 - $627 |
| UTH-3000 | 17.9 - 21.4 | 3000 | $550 - $715 |
| UTH-3500 | 21.5 - 25 | 3500 | $660 - $803 |
| UTH-4000 | 25.1 - 28.5 | 4000 | $715 - $891 |
| UTH-5000 | 28.6 - 35.7 | 5000 | $825 - $1048 |
| UTH-6000 | 35.8 - 43 | 6000 | $935 - $1210 |
For further details regarding the product specification view here
Installation Costs are subject to prewire being completed. Prewire consists of
- Power supply capable of running the element
- Vertical Plate
- A draw wire to the floor
- For a 6000w system, a 30 amp relay will be required in the switchboard.
Installation Guide
For Hotwire Heating Mat Installation manual
Warranty
Comprehensive guarantee on heating elements: 10 years
Thermostats and controller: 2 years
All products manufactured by Hotwire Heating are of the uppermost standard and are in accordance with Australian Consumer Law. Hotwire Heating offers a warranty period on products from the date of purchase and that the products are free from defects in materials and workmanship, subject to the terms and conditions detailed on their website.
Additional information regarding the warranty is available here
For further enquiries regarding the after-sale and service, you can contact Hotwire Heating directly on 1300 468 947 for assistance.
