Metlam Pull Down Grab Rail with Toilet Roll Holder - Satin Stainless Steel

Metlam Australia Grab Rails are available to suit accessible and ambulant toilets, commercial washrooms, shower blocks, domestic and medical facilities, and more. Made from #304 stainless steel and available in a range of configurations and finishes, we have AS1428.1 compliant grab rails tested to 1100Nm force applied in any position or direction as specified in the standard AS1428.1 for the manufacture and design of Grab Rails.

Product Features:

-Unit is Seamless Welded & Polished
-Material: #304 Stainless Steel - 32mmØ
-Finish: Satin Stainless Steel
-Mounting: Concealed Fix - 78mmØ Wall Mount Flanges
-Tubing: 1.2mm #304 Stainless Steel - 32mmØ
-Mounting Bracket & Brace: 2.5mm Formed #304 Stainless Steel

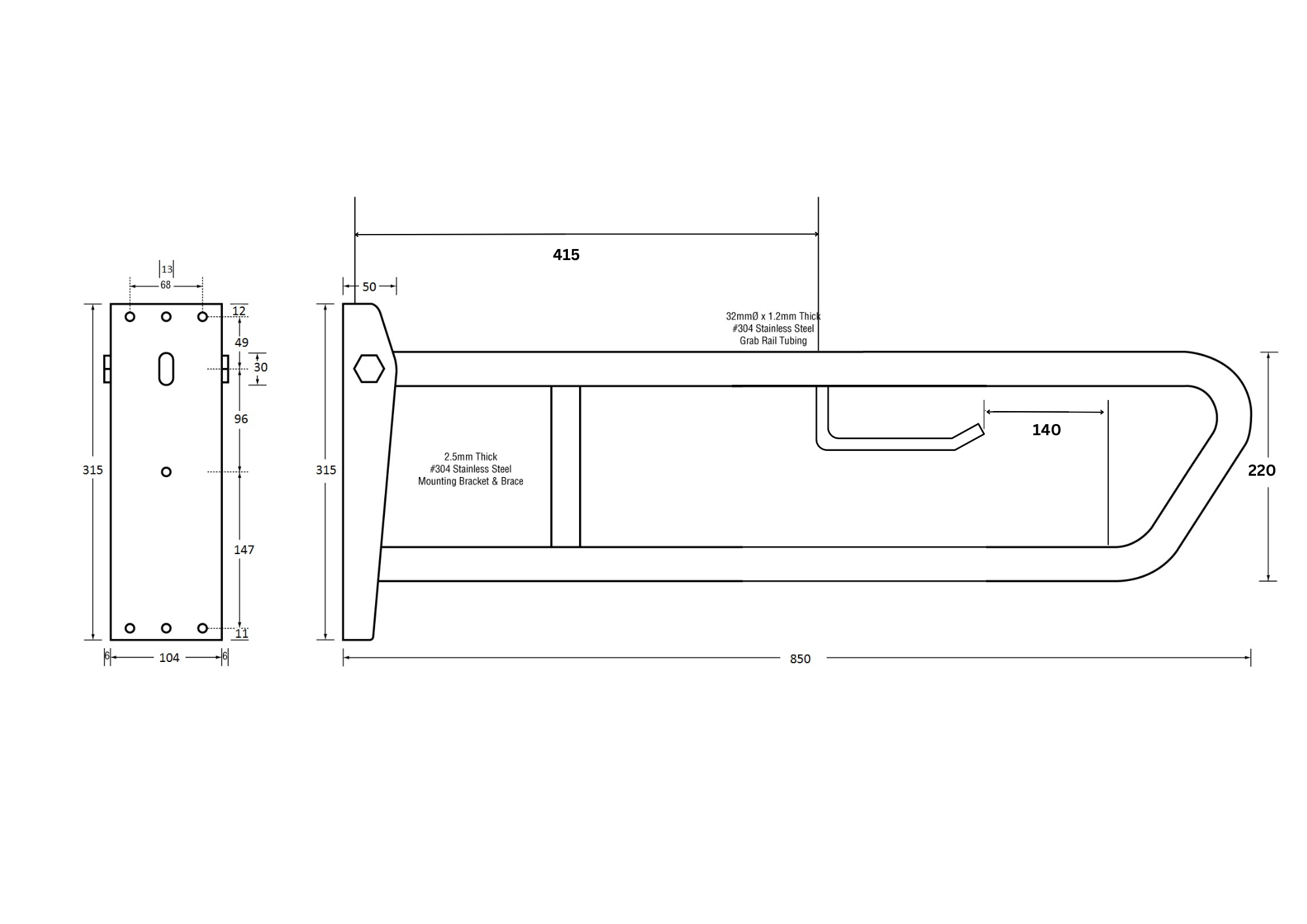

-Overall Dimensions: 850mmL x 315mmH
-Grab Rail: 215mmH from outer edge to edge
-Toilet Roll Holder: 12.5mmØ Stainless Steel Bar 168mmL with top of Holder 50mm below underside of upper rail
-Mounting Bracket: 104mmW x 315mmH x 30~50mmD x 2.5mmT
-Mounting Holes: 7 off by 8mmØ

Consumable Advice: Standard Toilet Roll, can hold up to 230 sheets per roll

Notes:

* Unit stores in upright position

* It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations.
