Radiant Heating Curved Edge Single Bar 12V Heated Towel Rail Polished 650

• Fits 1 towel on 1 heated bar
• Polished finish to sit with polished tapware and accessories
• 304 grade stainless steel that stands up to a steamy bathroom for years
• 12V extra-low voltage, hardwired by an electrician
• Installation kit needed: a 60W transformer and in-wall fixing bar per install spot. Add them above.
• Low running cost: 15W, about $0.14 a week at 4 hours a day
• IP55 rated for bathroom use
• Radiant warranty: 10 years
• Add a timer above so it switches on before your shower and off when you forget

Our Single Towel Rail collection is the perfect way to add the finishing touch to any bathroom, giving the flexibility of using multiple rails, whilst this minimalist look will create a stunning statement. Designed to be placed in banks of 3, 4 or 5 for best effect when heated.

FEATURES:

Price Per Bar Please Selection Quantity

• 304 Grade Stainless Steel
• Curved (Aspen / Vail) bars
• 1 bars
• 15W
• Low voltage 12V / IP55 rated
• 80mm from wall
• Wiring Options

Digital Timer Switch Available Here

Installation Instructions click here

If using as Non-Heated the customer will simply cut the wires and use the brackets included in the box to fix to the wall. If Heating the rails you will additionally require a transformer and a fixing kit

Specs are from Radiant and are for guidance only. Confirm mounting points with the rail on site before drilling.

Installation

• The in-wall fixing bar and 60W transformer go in before the wall is sheeted, so order them with the rail.
• Must be hardwired by a licensed electrician.
• Installing 3 or more bars in one spot? Radiant can supply the kit free. Contact us before you order.
• Fix into studs or timber noggins. Use the mounting points in Specifications to set them at rough-in.
• Wiring it through a timer is recommended.

Care

• Wipe with a soft damp cloth and dry. Mild soapy water only.
• Avoid abrasive pads, bleach and acidic cleaners, which can mark the finish.

• Warranty: 10 years

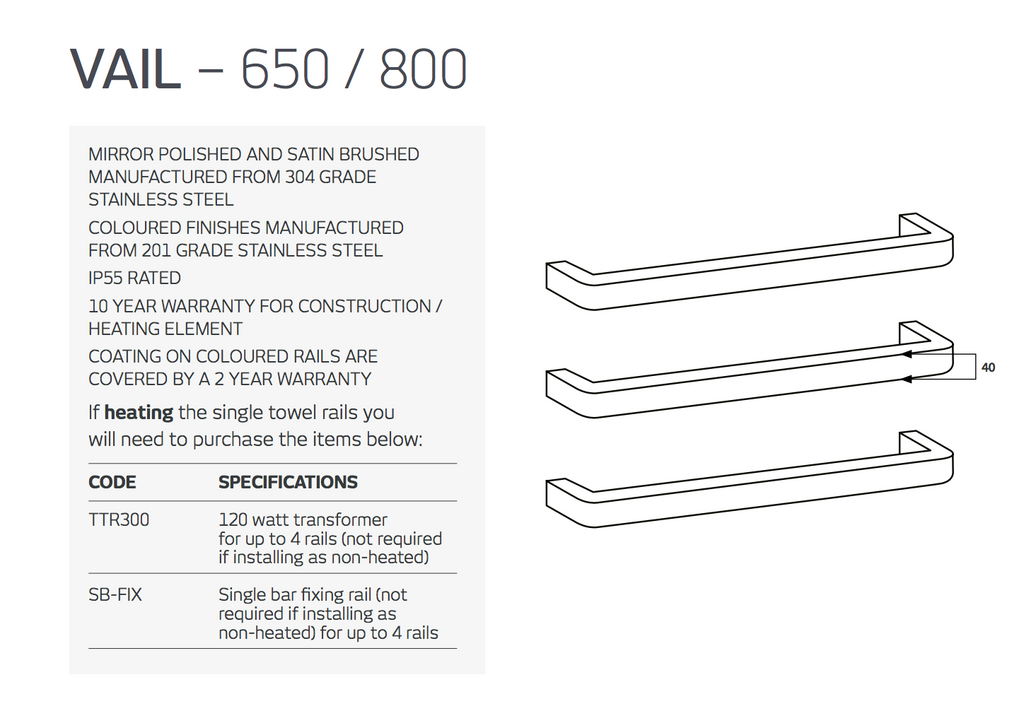

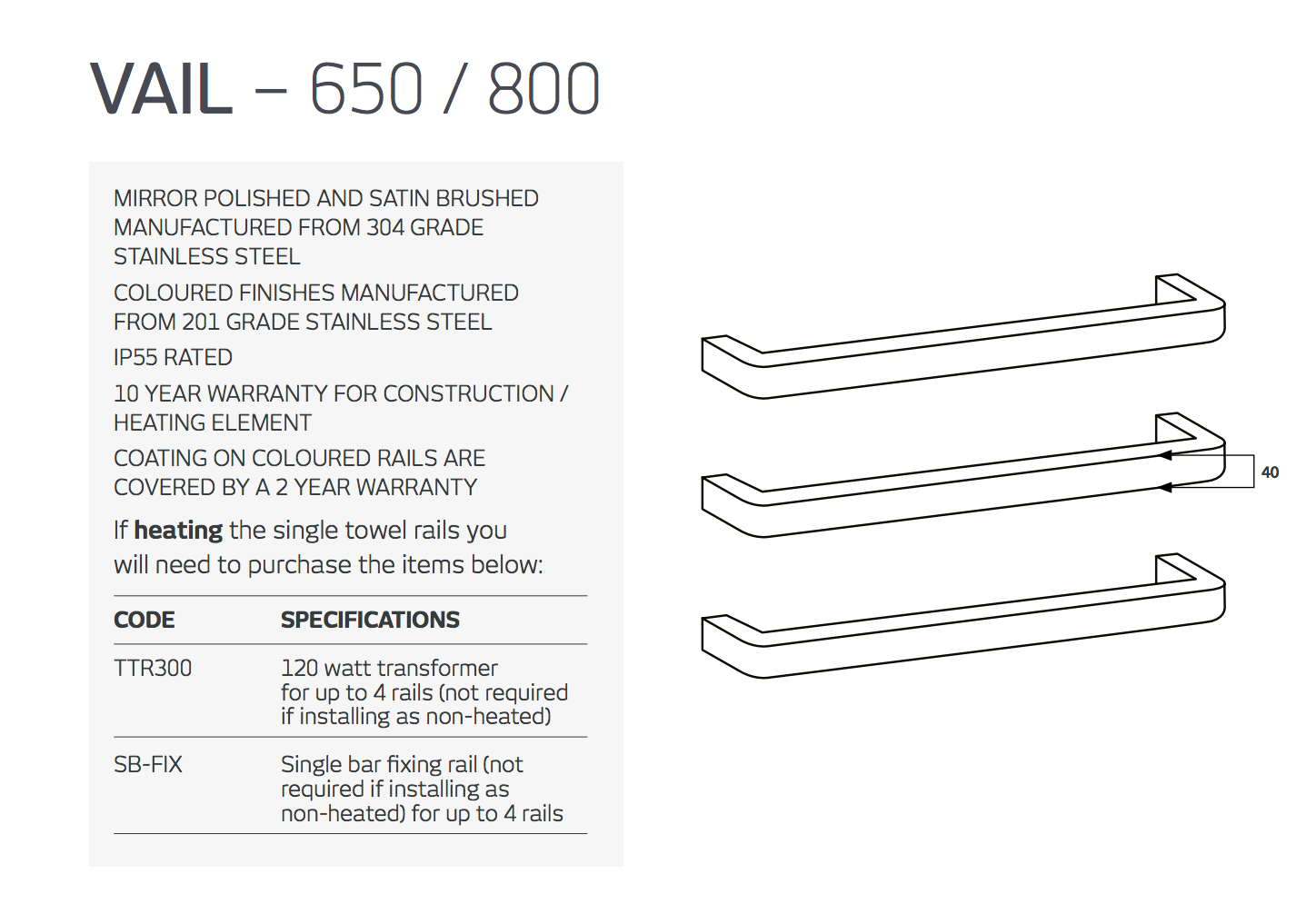

• VAIL-650 Specification Sheet (PDF)
• Radiant Warranty Information (PDF)

How much does it cost to run?
It draws 15W. At 4 hours a day and 33c/kWh that is about $0.14 a week. A timer keeps it to the hours you need.

Do I need an electrician?
Yes. 12V rails are hardwired through their transformer by a licensed electrician.

What else do I need?
Each install spot needs a 60W transformer (TTR300) and an in-wall fixing bar (SB-FIX), fitted before the wall is sheeted. You can add both above. Putting 3 or more bars in one spot? Radiant supplies the kit free, so contact us first.

Can I use it with a timer?
Yes. Pick one above. A timer heats your towels before you shower and switches the rail off automatically. Your electrician wires the timer to the rail's transformer.

Why choose a 12V rail?
12V is extra-low voltage, run through a transformer. Your electrician will confirm the best position for it in your bathroom.
