Product: Thermonet Undertile Heating Kit with Thermostat 150W/m²
Product Features:

  • Thermonet includes a 3.5mm TwistedTwin cable for longer-lasting heating cables with zero electromagnetic fields (Zero EMF)
  • Thermonet is installed using a wire side facing down allowing the heating cable to be protected from damage during the installation by the hardwearing mesh layer.
  • Thermonet heating mats are also available in kits including the standard thermostat (5220A) or as heating mats only
  • Made in Germany

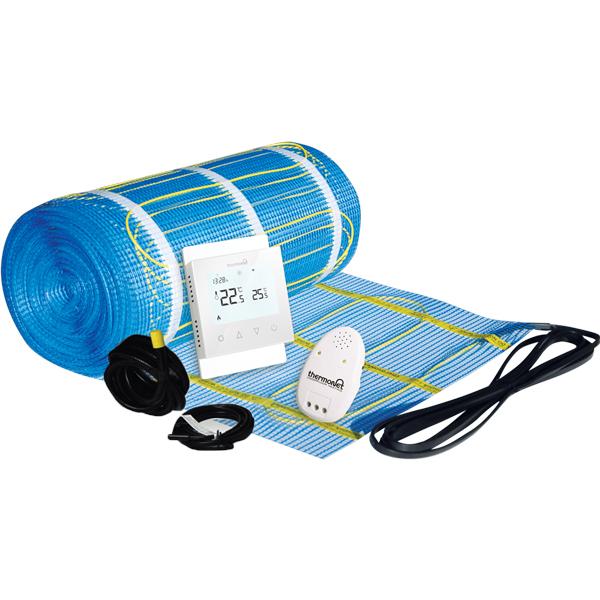

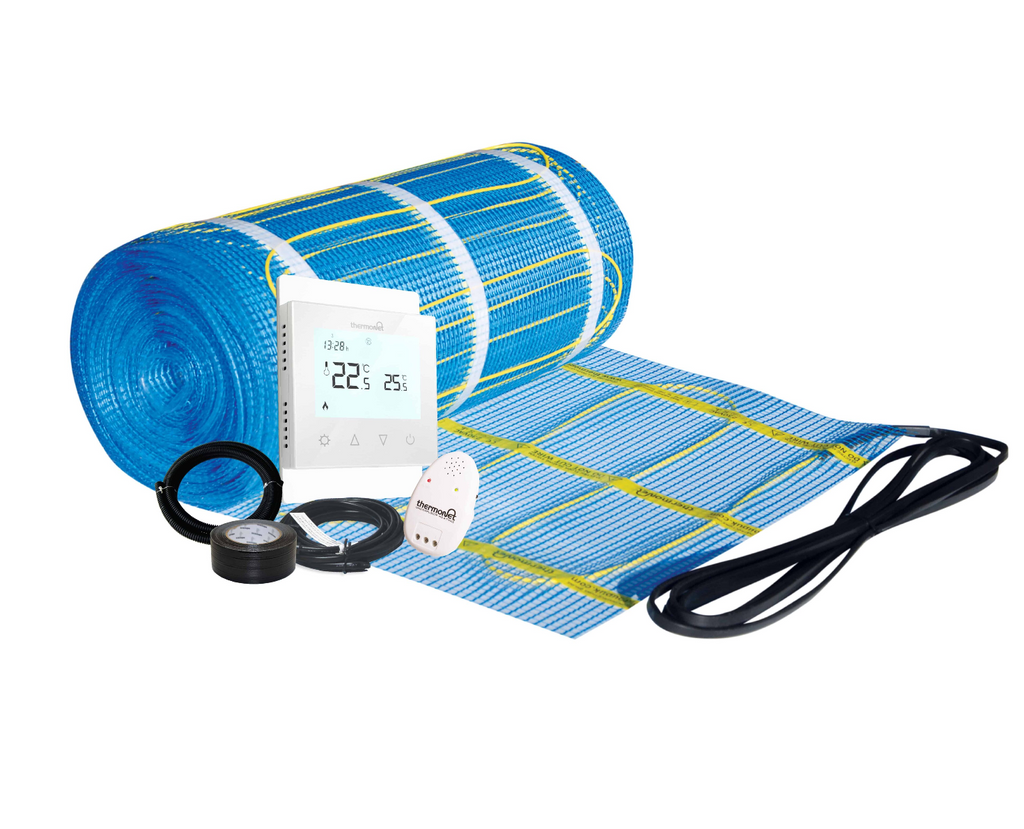

    What’s in the box

    Thermonet Undertile Heating Kit with Thermostat is ready for installation. The kit includes:

    • Thermonet Mat 150W/
    • Programable Thermosat
    • Floor Temperature Sensor
    • Sensor Conduit
    • Cable Monitor
    • Installation Guide

    Specifications

    Size Area
    Output  Resistance
    2 x 0.5m1m²150W 353
    3 x 0.5m1.5225W235
    4 x 0.5m2300W176
    5 x 0.5m2.5m²375W141
    6 x 0.5m 3450W118
    7 x 0.5m 3.5525W101
    8 x 0.5m 4600W88
    9 x 0.5m4.5675W78
    10 x 0.5m 5750W71
    12 x 0.5m6900W59
    14 x 0.5m71050W50
    16 x 0.5m81200W44
    18 x 0.5m91350W39
    20 x 0.5m101500W35
    24 x 0.5m121800W29
    28 x 0.5m142100W25
    32 x 0.5m162400W22


    Full product specifications are available here.


    Technical Data

    Width500mm
    Heated Width430mm
    Max. Thickness3.5mm
    Max. Temperature 28°C *
    Protection Rating 1P68
    WarrantyLifetime
    Wattage 150W/m²
    Conductor TypeSingle Ended
    Cold Tail Length 5m
