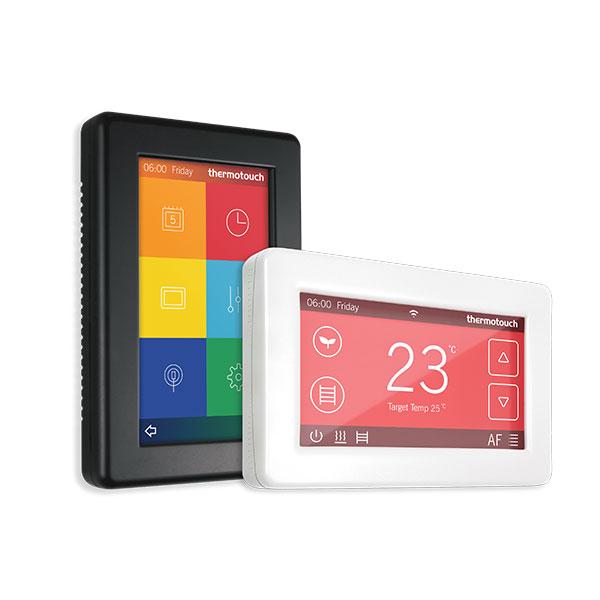

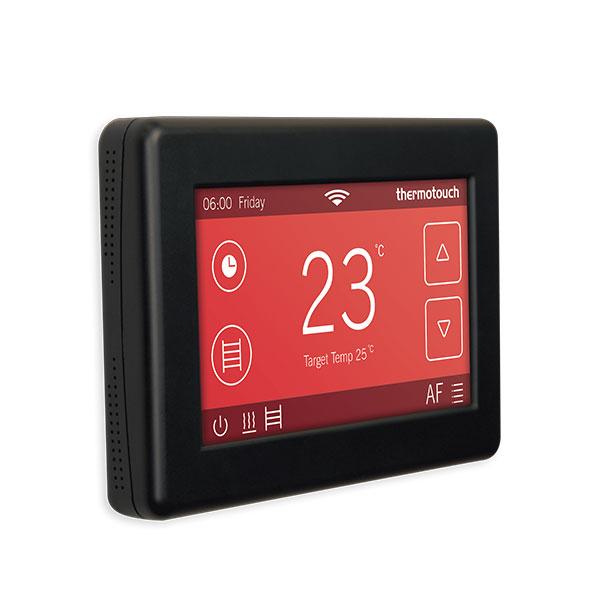

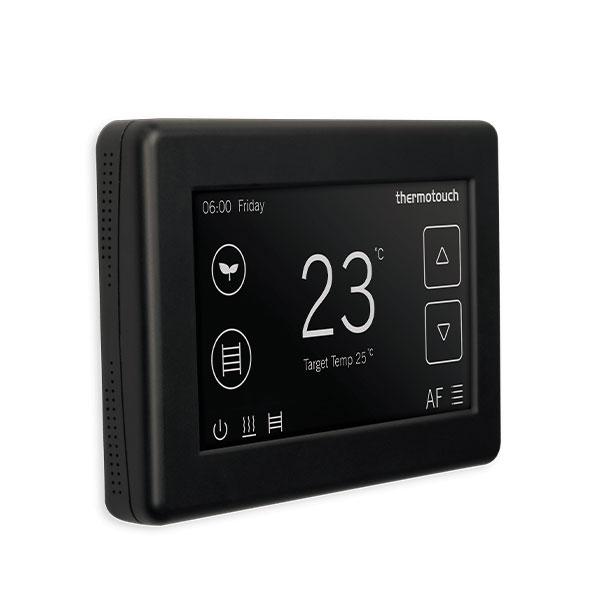

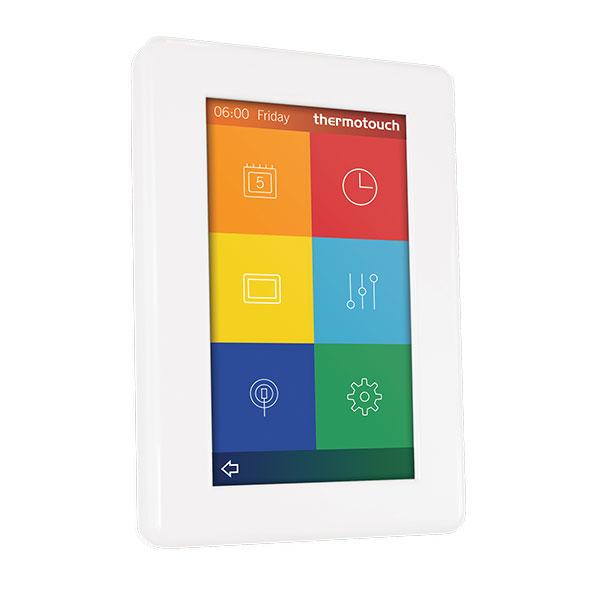

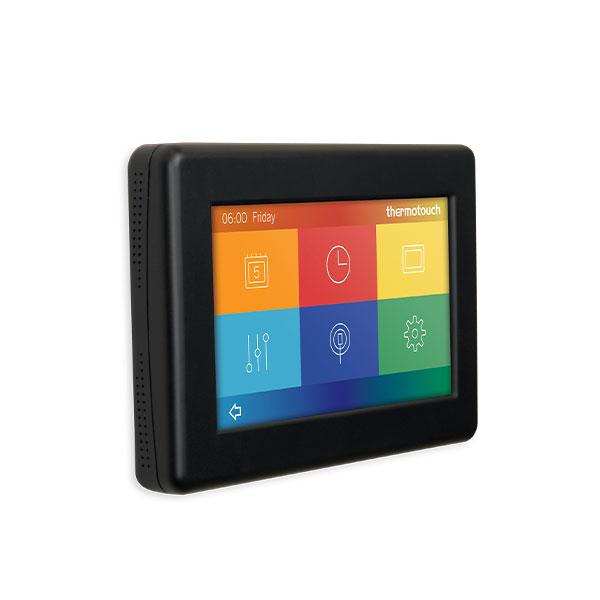

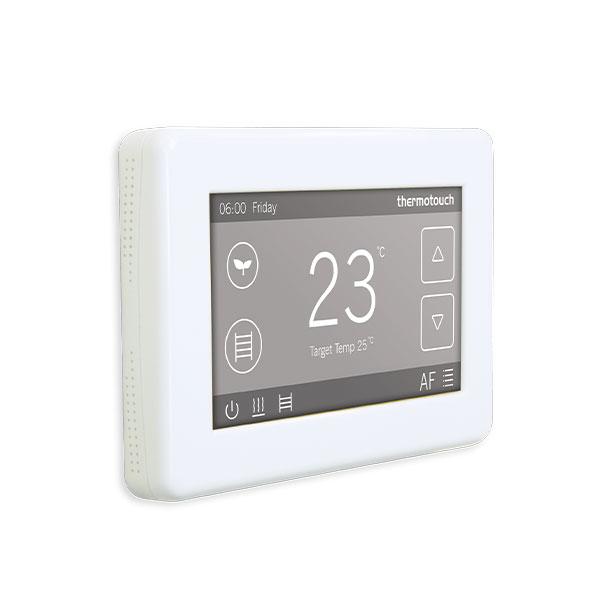

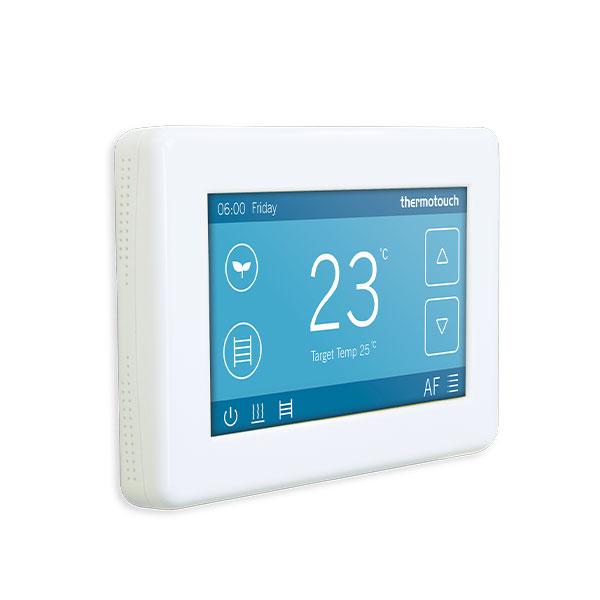

Thermotouch 4.3dC is a dual thermostat that can control underfloor heating, electric towel rail, and the mirror demister.
Thermotouch has been designed to deliver an easy-to-use electric underfloor heating thermostat that has been easy to operate with all the functionality.
Product: Thermotouch 4.3dC Dual Control Thermostat

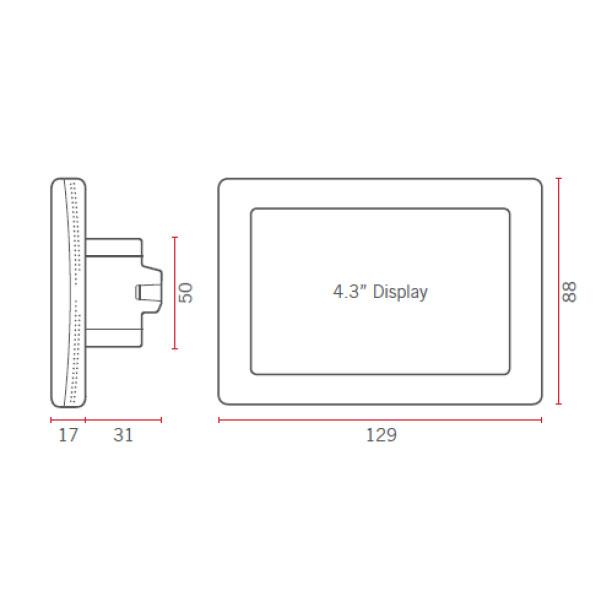

Dimensions: 129mm (W) x 88mm (H) x 48mm (D)
Product Features:
- The depth of the thermostat will sit 31mm in the wall
- Two independent relays allow you to control your underfloor heating and towel rail separately working on different on/off heating schedules
- Set up an energy-efficient, on-demand heating schedule for your underfloor heating
- Override your heating schedule for up to 4 hours with a simple touch of the screen
- Multiple sensor compatibility with the most popular floor sensor probes on the market, making it suitable to upgrade your current thermostat
- Smart adaptive start with the Thermotouch learning how long it will take your floor to heat up and ensure your room is warm at the set temperature
- Flexible heating schedule for every day of the week
Technical Data
Supply Voltage | 230V 50/60Hz |
Backup storage | EEPROM (Approximately 1 year back up) |
Protection Rating | IP30
|
UFH Relay | 16A (3600W) |
Appliance Relay | 5A (1125W)
|
Consumption | 2W |
Colour | 5215: Ice White 5216: Satin Black |
Temperature Range | 5 °C - 35 °C (0.5°C increments)
|
Accuracy | ±0.5°C |
Compatible Sensors | 6.8 Ω, 10Ω, 12Ω, 15Ω, 33Ω @ 25°C |
What’s in the box
Thermonet Undertile Heating Kit with Thermostat is ready for installation. The kit includes:
- Thermotouch thermostat
- Floor sensor probe (2m)
- Floor sensor conduit (3m)
- Fixing screws
- Installation manual
- Warranty information
Warranty
Thermogroup accessories are covered by 10 years replacement on products or parts*
Underfloor Heating:
- Lifetime Warranty on systems
- 3 years warranty on Thermostats
Timers:
For aftersales and service enquiries contact Thermogroup directly on (02) 6953 4225 for further assistance.
